FG221

A triplex pump typically integrates three pump cores and can share a single drive source, enabling simultaneous delivery of hydraulic oil at multiple channels with different pressures or flow rates. Widely applied in equipment with high integration requirements for hydraulic systems (such as engineering machinery and heavy-duty machine tools), it features reduced installation space, simplified pipeline complexity, and enhanced system stability.
A triplex pump typically integrates three pump cores and can share a single drive source, enabling simultaneous delivery of hydraulic oil at multiple channels with different pressures or flow rates. Widely applied in equipment with high integration requirements for hydraulic systems (such as engineering machinery and heavy-duty machine tools), it features reduced installation space, simplified pipeline complexity, and enhanced system stability.
  • Features and Model Description
  • Functional Section
  • Performance Parameters

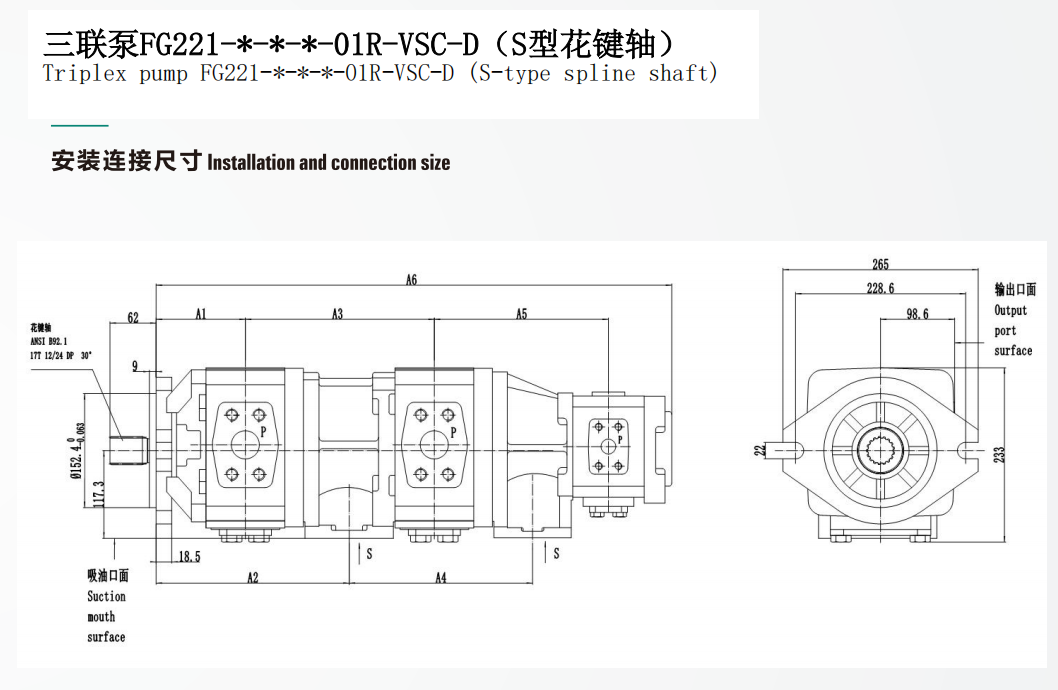

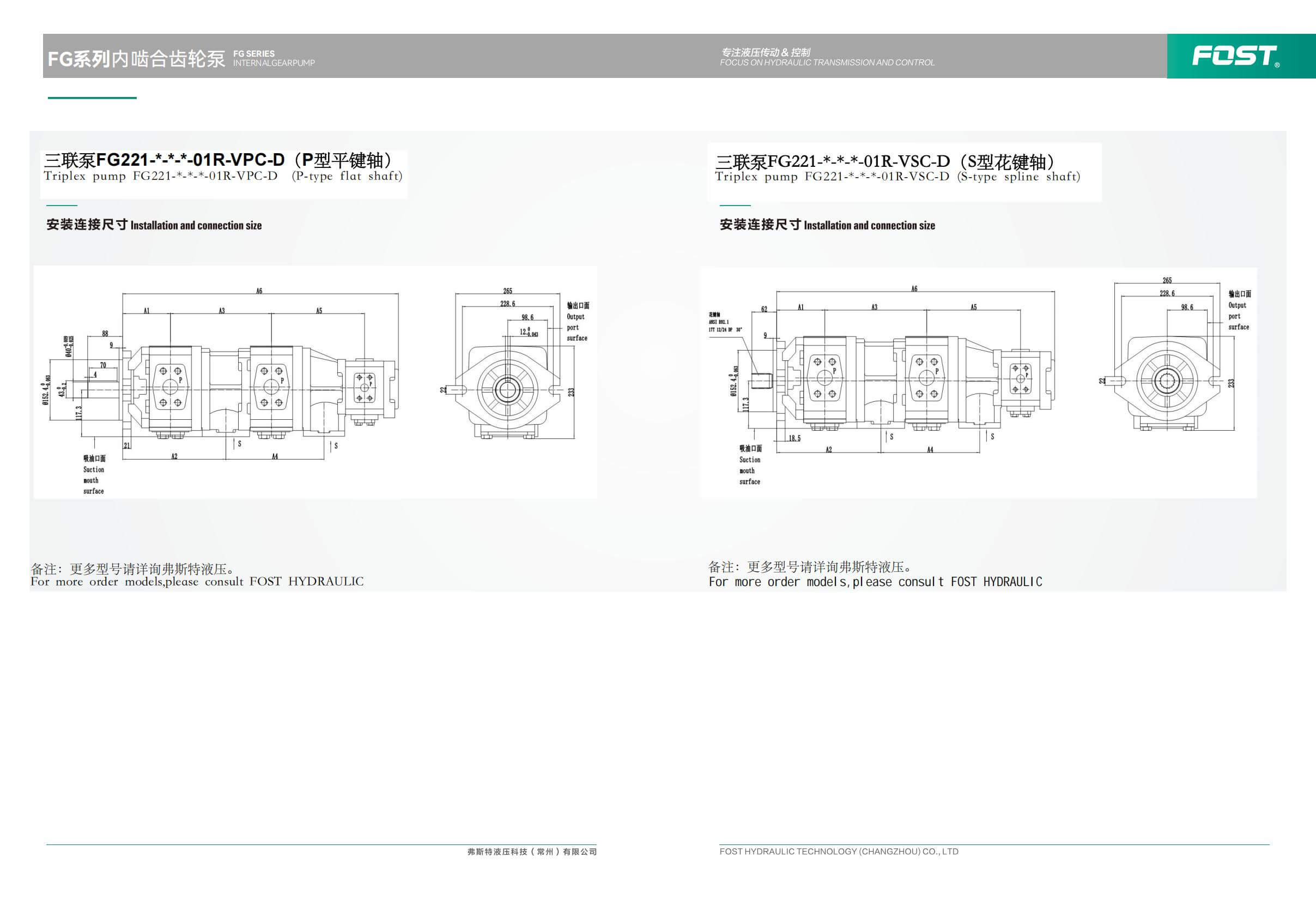

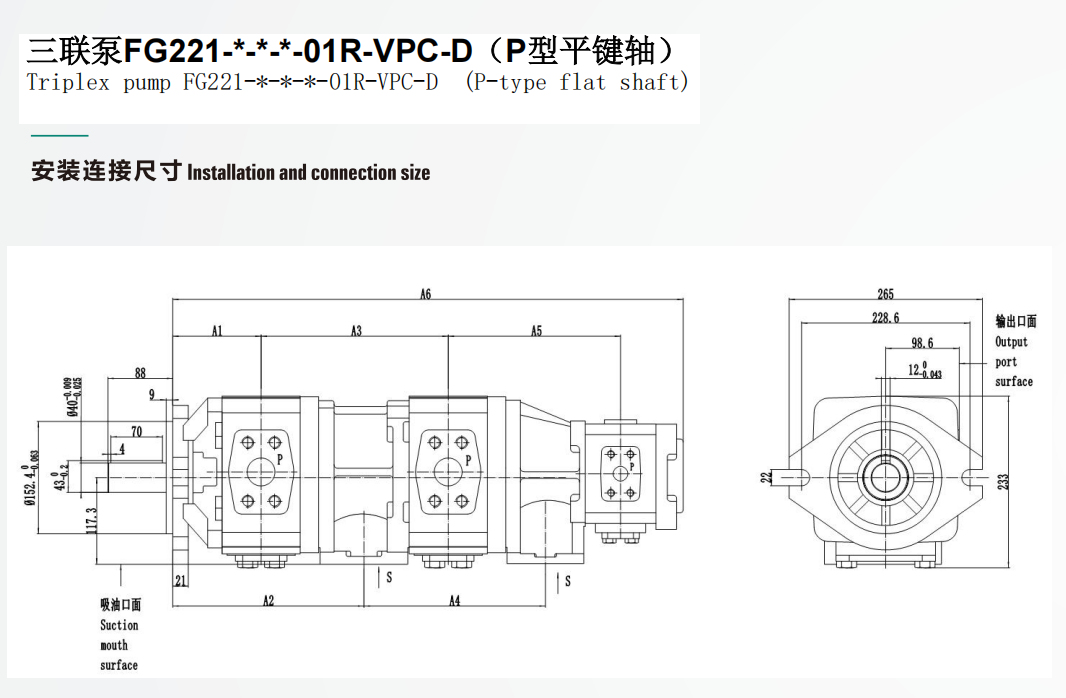

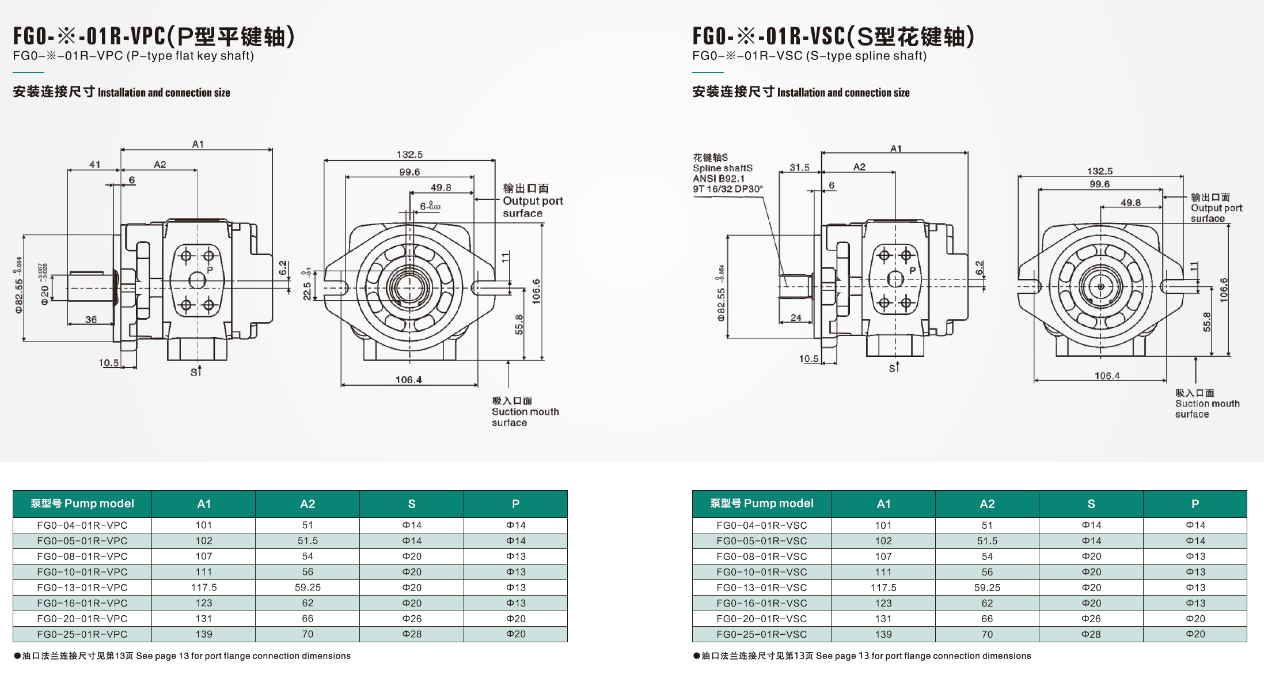

  • Mounting and Connection Dimensions

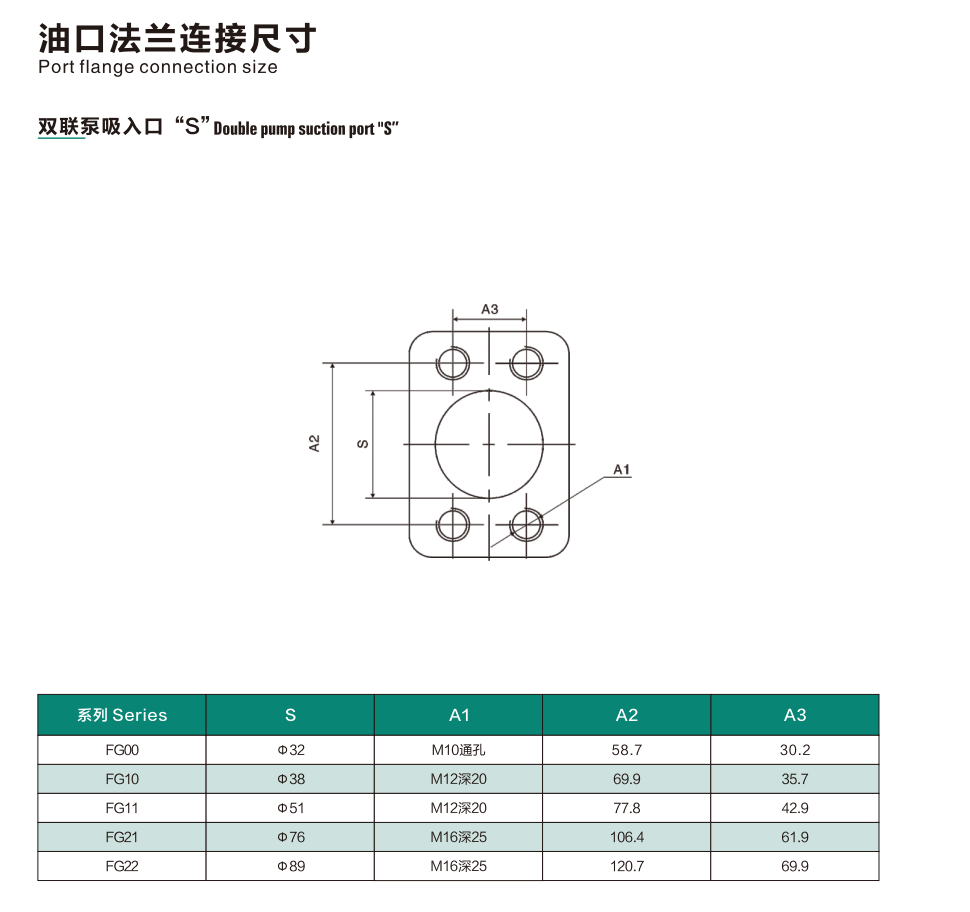

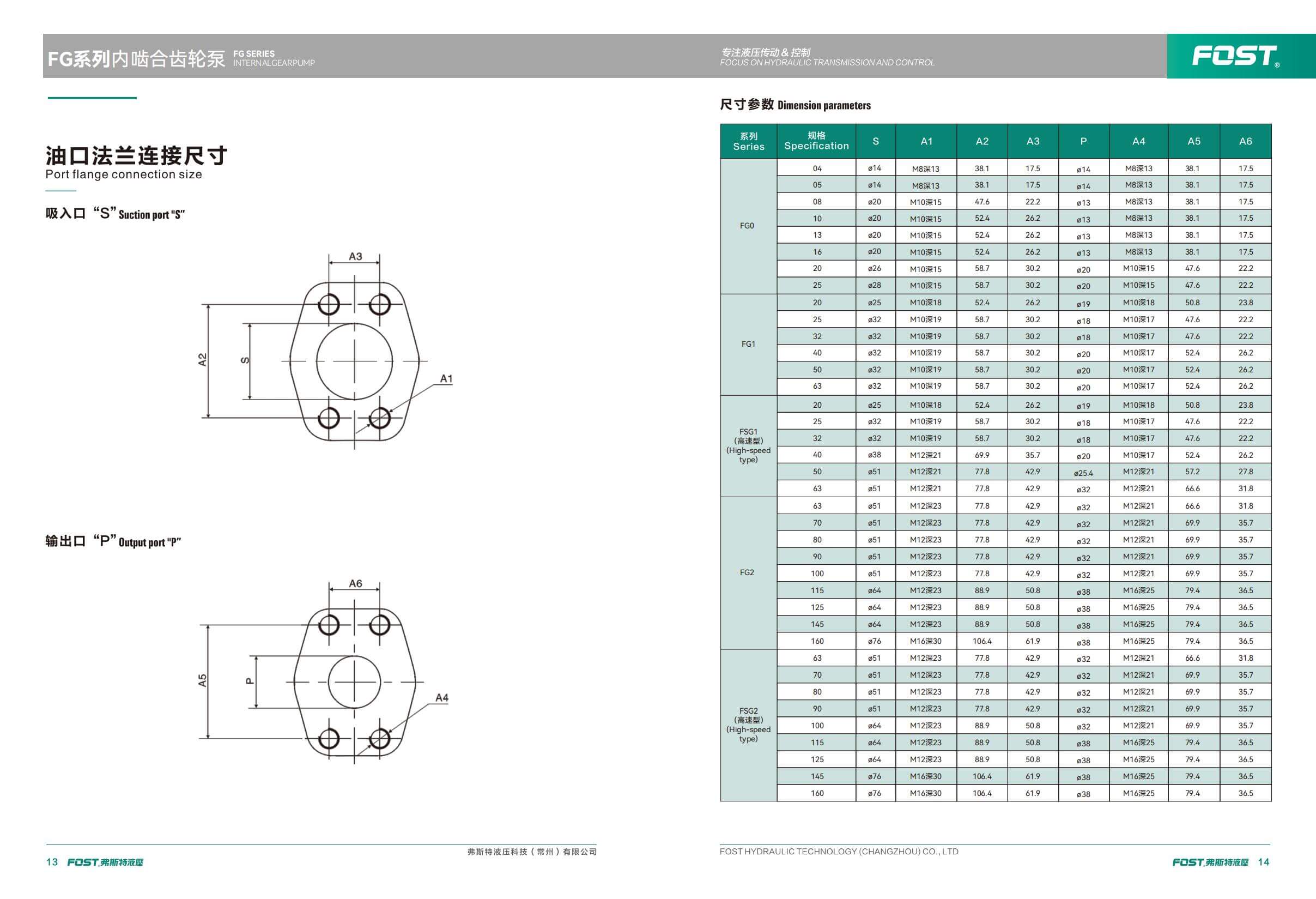

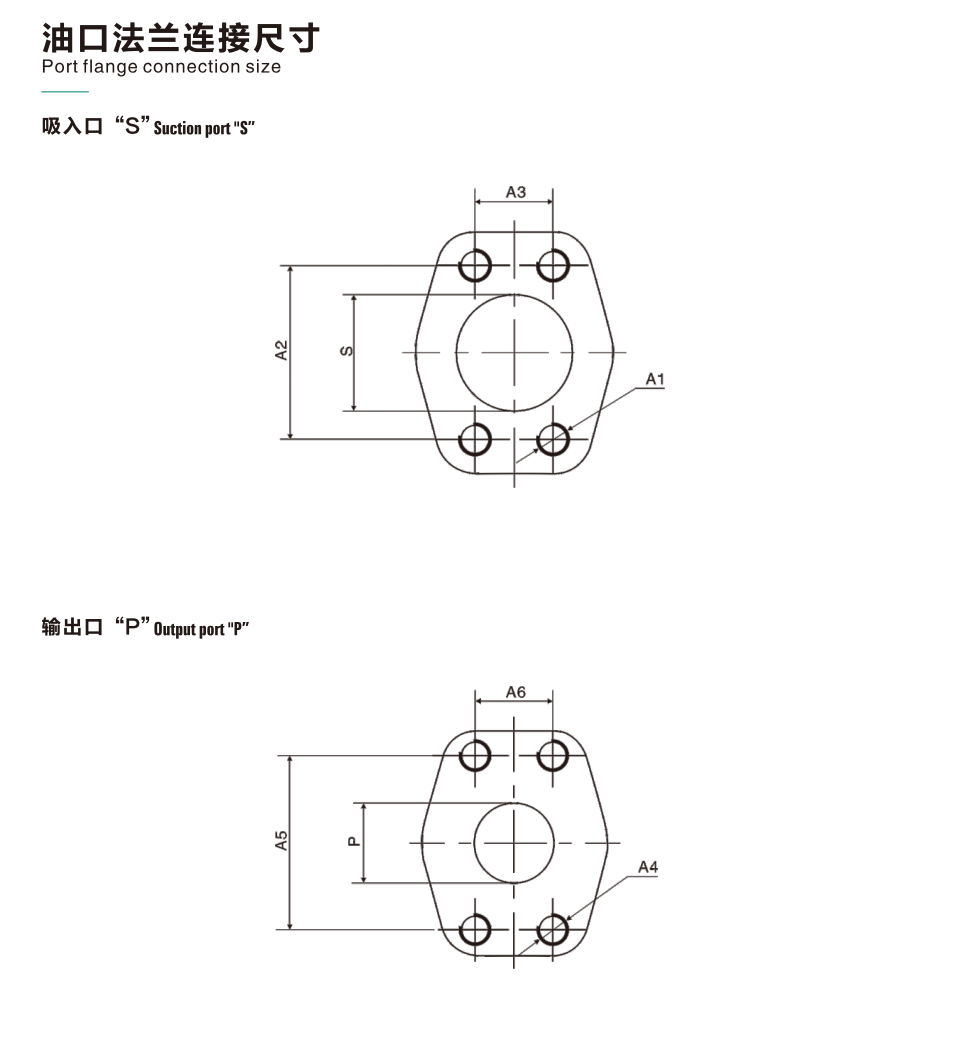

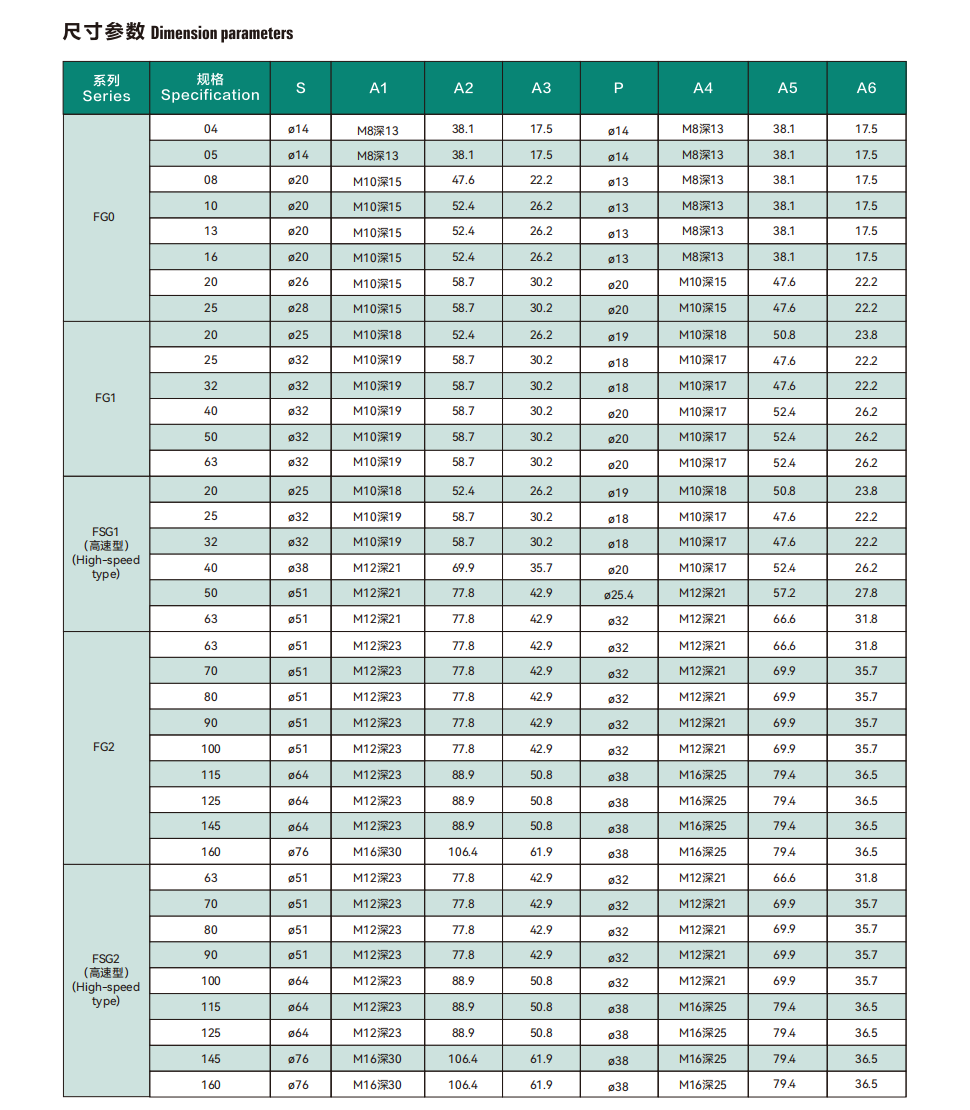

  • Port Flange Connection
  • Precautions
