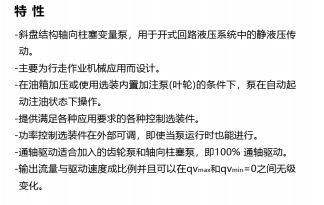

Features

Swashplate-type axial piston variable displacement pump for hydrostatic drive in open-loop hydraulic systems,

- Primarily designed for mobile machinery applications.

- Operates in automatic start-up priming mode when tank pressurized or with optional integrated priming system (impeller).

- Offers various control options to meet diverse application requirements.

- Power control options are externally adjustable, even during pump operation.

- Full shaft drive accommodates integrated gear pumps and axial piston pumps. Achieves 100% shaft drive.

- Output flow varies proportionally with drive speed, offering stepless adjustment between qVmax and qVmin = 0.
